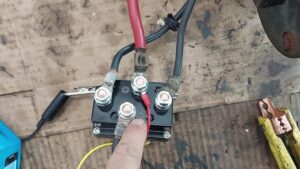

Check out this what not to do video and i'll talk you through some precautions you can take to avoid the same outcome and just how i went about replacing my burnt out solenoids! To test a winch solenoid, use a multimeter to check continuity and voltage at key terminals Remove the solenoid cover with a 5/16″ wrench to access the internal components
Warn 2500 Winch Solenoid Wiring Diagram Atv
Symptoms of a faulty solenoid may include clicking sounds without movement, erratic winch operation,.
Diagnose issues, troubleshoot problems, and replace faulty solenoids for reliable winch performance.
If your winch isn’t engaging, the issue is most often solenoid failure, dirty contacts, or low battery voltage Ever been on the tracks and gone to use your winch and get nothing but a click click Watch this to find out how to free up the solenoid and get your. If you have accessory terminals between the main battery terminal and the winch positive and negative cables, you need to rearrange so that the.
Winch solenoid types and mounting locations, covering wiring logic, reliability, and placement for durable winch systems. This comprehensive guide covers the installation of electric winches, including mounting, electrical connections, and safety procedures Proper installation is critical for safe operation and long winch life. Understanding how a winch solenoid works can help ensure your winch operates smoothly and safely
The solenoid acts as a switch, controlling the.
Compatible with any f1/f2/a winch control. Learn how to wire a 12v winch solenoid with a detailed wiring diagram for easy installation and troubleshooting Increase the functionality of your winch. In this video i use a common warn solenoid pack which has a fault
Included in the video is the wiring diagram, testing & disassembly of the complete component to show the internals & more. You must consult the owner's manual of your winch and have a professional complete this work because it can be dangerous.more When the winch is turned off, the solenoid opens the contact, and the electrical flow is interrupted A direct wire winch solenoid is a straightforward way of wiring.
A winch solenoid is an electronic device that activates the motor on a vehicle winch
Its basically a large electronic switch that operates from a smaller “signal” switch. Righto guys, i learnt the hardware how not to service your winch solenoid.i was having problems with the solenoid contractors passing current, i could hear t. Step by step guide on how to diagnose the fault and repair your electric winch Based around a generic warn model, this should give you all the info you need to do the job yourself.
